IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor

Product Categories

Kronz (guangzhou) Electronics Co., Ltd.

Contact Now

IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor

Name: IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor
Brand: KRONZ
Price: 1 USD

Quality IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor for sale

Brand Name : KRONZ

Model Number : KD50-L30N

Place of Origin : Guangdong, China

Certification : CE

MOQ : 1

Price : Negotiable

Packaging Details : Polybag packing

Delivery Time : 5-8 working days

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 10000 pieces per month

Operating Temperature : -10~45°C

Vibration Resistance : 10~55Hz, Double Amplitude 1.5mm,X、Y、Z Directions, 2 Hour For Each

Operating Humidity : 35~85%RH(no Condensation Or Icing)

Ambient Illuminance : Sunlight: ≤10000lux, Lamp:≤3000lux

Wavelength : 655nm

Storage Humidity : 35~95%RH(no Condensation Or Icing)

Weight : Cable Type: 65g

Housing Material : Housing: PBT, Lens: PMMA

Contact Now

Product Description:

The Photoelectric Sensors product is a versatile and reliable solution designed for a wide range of applications, including machine guarding and automation systems. The CMOS sensor enables fast processing, high resolution, and stable performance even for challenging surfaces (e.g., glossy, dark, or rough textures).

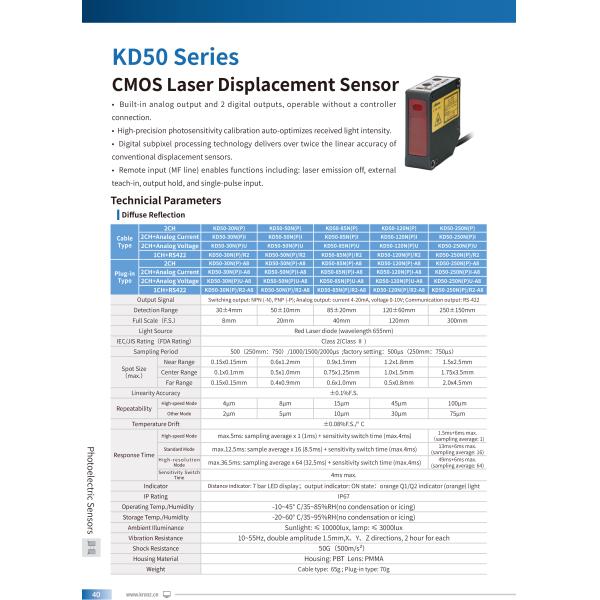

IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor

Cable Type	2CH+Analog Current	KD50-L30N
Output Signal		Switching output: NPN (-N)
Detection Range		26.3±2mm
Full Scale (F.S.)		4mm
Spot Size	Near Range	0.15 x 0.15mm
Linearity Accuracy		±0.2%F.S.
Repeatability		1μm
Response Time	High-speed Mode	max.5ms: sampling average x 1 (1ms) + sensitivity switch time (max.4ms)
Response Time	Standard Mode	max.12.5ms: sampling average x 16 (8.5ms) + sensitivity switch time (max.4ms)
IP Rating		IP67

IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor

Applications:

KRONZ Photoelectric Sensors are versatile sensors suitable for a wide range of product application occasions and scenarios due to their high-quality features and specifications. These sensors, originating from Guangdong, China, come with CE certification, ensuring their reliability and performance.

Height or Thickness Control: Ensuring consistent material thickness in processes like film extrusion or sheet metal production.

Positioning and Alignment: Used in robotic systems to precisely align tools or components.

IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor
